• Type: Dual-Stage
  • Engine: 208cc OH V 4-cycle
  • Clearing Width: 26' (66 cm)″
  • Starter: Electric / Recoil

Snowblower Specifications

  • John Deere 38' Snow Blower-GT235 Tractor is not Included in the Listed Price, it is Available for an Additional $1,095 38' SnowBlower Came off of a John Deere GT275 Tractor Updated: Mon, Nov 30, 2020 8:21 AM.
  • Snowblower: Blade: An optional 6.5-bushel rear bagger (BM16790) was available for the John Deere 170. Front wheel weights (35 pounds each) were recommended when the bagger was used on slopes. Dual 40-pound rear weight plates plus rear tire chains were available for use with the snowblower.

Click to add item 'Lawn-Boy® 24' 212cc Two-Stage Electric Start Gas Snow Blower' to the compare list. Compare Click to add item 'Lawn-Boy® 24' 212cc Two-Stage Electric Start Gas Snow Blower' to the compare list. Add To List Click to add item Lawn-Boy® 24' 212cc Two-Stage Electric Start Gas Snow Blower to your list.

  • Engine
    BrandTroy-Bilt®
    Type2 stage
    Horsepower208cc OH V 4-cycle
    Starting SystemElectric / Recoil
    Fuel Tank2 qt
  • Overview
    In-Dash_HeadlightsIn-Dash Headlights
    Heated_HandlesN/A
    Consumer_Warranty2-Yr Limited
    Commercial_WarrantyN/A
  • Drive System
    DriveAll Wheel Drive
    Forward_Speeds6 forward
    Reverse_Speeds2 reverse
    Tire_TypeX-trac
    Tire_Size15' x 5' (38.1 cm x 12.7 cm)
    Skid_ShoesStandard
  • Auger
    Clearing Width26' (66 cm)
    Clearing Height21' (53.3 cm)
    MaterialSerrated Steel
  • Chute
    MaterialPolymer
    Chute_Rotation2-way joystick
    Turning_Radius200°
    Max_Throwing_DistanceUp to 35 feet (10.67 m)
John deere 2640m snowblower

Snowblower Reviews

2640m Snowblower
  • Troy built storm 2620
    By Charles Denton(Owner), Dec. 29, 2012
    So far so good No problems at all. Cleared 12 inches of snow no problem and a few three foot drifts. Never had a troy built before I hope this snow blower lasts as long as my last one did. Bought a troy built weed wacker last summer very pleased. I would recommend troy-built. Chuck Illinois
    • Performance
    • Interior
    • Quality & Reliability
    • Overall Value

Most Popular SnowBlowers

The John Deere 175 is a lawn and garden tractor with small single cylinder Kawasaki FC420V vertical engine 423 cc (25.81 cu-in), Eaton Model 7 belt-driven hydrostatic transmission and Peerless differential. The John Deere 175 garden tractor was produced from 1987 to 1990.

The John Deere 175 tractor used an air-cooled single-cylinder four-stroke Kawasaki FC420V gasoline engine with vertical PTO shaft. The FC420V engine has an OHV (overhead valve) design; cast-iron cylinder liner; reciprocating balancer; float type carburetor with fixed main jet; flywheel magneto transistor type ignition system; mechanical governor. An 89.0 mm (3.5 in) cylinder bore and 68.0 mm (2.68 in) piston stroke give the motor a total of 423 cc of displacement. Compression ratio rating is 8.4:1. The Kawasaki FC420V motor produced 14.0 HP (10.4 kW) at 3,600 rpm of horsepower and 30.6 Nm (3.12 kg·m; 22.58 ft·lb) at 2,400 rpm of torque.

The John Deere 175 is equipped with a belt-driven hydrostatic transmission with differential, integral mechanical transmission disc brakes, and manual sector-and-pinion steering. This tractor used open operator station.

Following attachments are available for The John Deere 175 garden tractor:

  • John Deere mower deck – mid-mount 960.0 mm (38 in) mower deck with two blades and manual lift (Cutting height: 25—102 mm (1.00—4.00 in);
  • John Deere 2690M blade – front-mount 1060.0 mm (42 in) blade with manual lift;

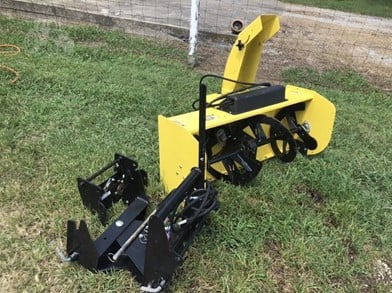

  • John Deere 2640M snow blower – front-mount snow blower with 960.0 mm (38 in) clearing width and manual lift;

John Deere 175 Specifications

John

2640m Snowblower

General Specifications
ModelJohn Deere 175
Length1,650 mm (65 in)
Width
Height990 mm (39.3 in)
Wheel base1,130 mm (44.7 in)
Dry weight213 kg (470 lbs)
Fuel tank capacity8.3 L (2.2 gal)
Battery12V
Engine
Engine modelKawasaki FC420V
FuelGasoline
Displacement423 cc (25.8 cu-in)
Bore x stroke89.0 x 68.0 mm (3.5 x 2.68 in)
Power output14.0 HP (10.4 kW) at 3,600 rpm
Starter typeElectric starter
Oil type10W30
Oil capacity1.3 L (1.4 US. qt)
Spark plugNGK: BPR5ES; CHAMPION: RN11YC

2640m Snow Blower

Transmission and chassis
Chassis4×2 (2WD)
Transmission typeBelt-driven hydrostatic transmission (Eaton Model 7)
GearsInfinite forward and reverse
Ground speedForward: up to 8.0 kmh (5.0 mph)
Reverse: up to 4.0 kmh (2.5 mph)
Transmission oil capacity0.7 L (1.5 pt)
Differential oil capacity0.7 L (1.5 pt)
PTO (Power take-off shaft)
PTO Type:Front, independent with electric clutch
Wheels and tires
Front tiresLawn/turf: 15×6.00-6
Rear tiresLawn/turf: 18×8.50-8
